Datasheet
Accent ColorPastel BlueJaco Wall StationScanner MountsJACO Wall Station Wired Scanner MountSelect AccessoriesNone selectedAll configurations must be validated for compatibility by GCX prior to order confirmation.Jaco EVO™ Wall Cabinet Computer Workstation
See more HideSpace-saving big-screen wall mounted computer workstation
The new EVO WS-27 Wall Station is ready whenever nurses and clinicians need it – and stays out of the way when they don’t. It holds a flat-screen display up to 27” for big, clear, high-resolution display of EHR applications, medical images and more. Choose from 2 mounting options: flush-mounted to project just 4” from the wall, or embedded to project just 1” from the wall for the ultimate space-saving, professional installation.
Features & Benefits
- Heavy-duty—built to last from aircraft-grade metal
- Holds flat-panel LCD/LED display up to 27”, plus thin-client or zero-client CPU, keyboard and mouse
- Modular 2-piece design with intelligent cable management for easy power connection and wall installation
- Slim form factor: Mounts flush to project just 4” from the wall, or can be embedded to project just 1” from the wall
- Foldable retractable keyboard tray includes spacious 19” x 9” worksurface—rare in a wall mounted computer station
- Superior infection control—non-porous antimicrobial powder coat on all metal surfaces stands up to medical-grade chemical and UV sterilization
- Low maintenance design, with a 10-year warranty
Overall Dimensions
46”H x 29.5”W x 4”DProduct Weight
25 lbs.Monitor Display Opening
26.5”W x 16.25”HMax. LCD / LED Monitor Size
27” diagonalCompatible VESA patterns
75 mm, 100 mmComputer Bay Size
12”H x 26.5”W x 3”DWorksurface Dimensions
19”W x 9”DMaximum Reach / with Extension
8”Distance from Wall Flush / Embedded
4” / 1”Overall Weight Capacity
50 lbs.Warranty
10-year limitedEVO WALL ARMS ARE COVERED BY THE FOLLOWING JACO WARRANTIES:
- 10-Year Warranty on all Jaco-manufactured standard structural components and dress covers
- 7-Year Warranty on all Jaco-manufactured optional components and accessories
- 3-Year Warranty on all Jaco electrical components
Compare details for Accent Colors

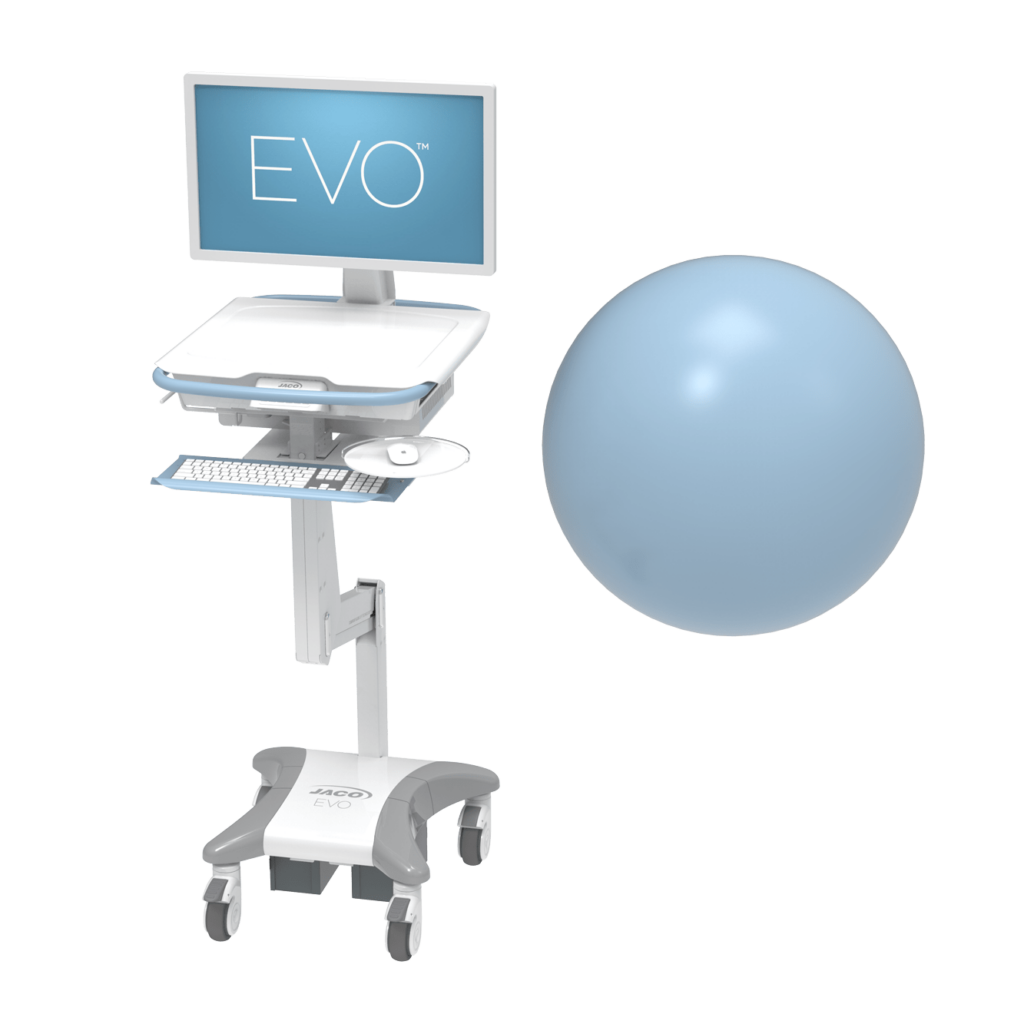

Jaco Customization, Accent Color, Pastel Blue, RAL5024, Antimicrobial Powder Coat, Smooth Gloss, (default color)
32-0201-PC
This Pastel Blue color is the default standard accent color that is used on Jaco products. There are other colors to choose from if desired.
POWDER, RAL5024, PASTEL BLUE, POLYESTER, ANTIMICROBIAL, SMOOTH GLOSS, PER PRODUCT

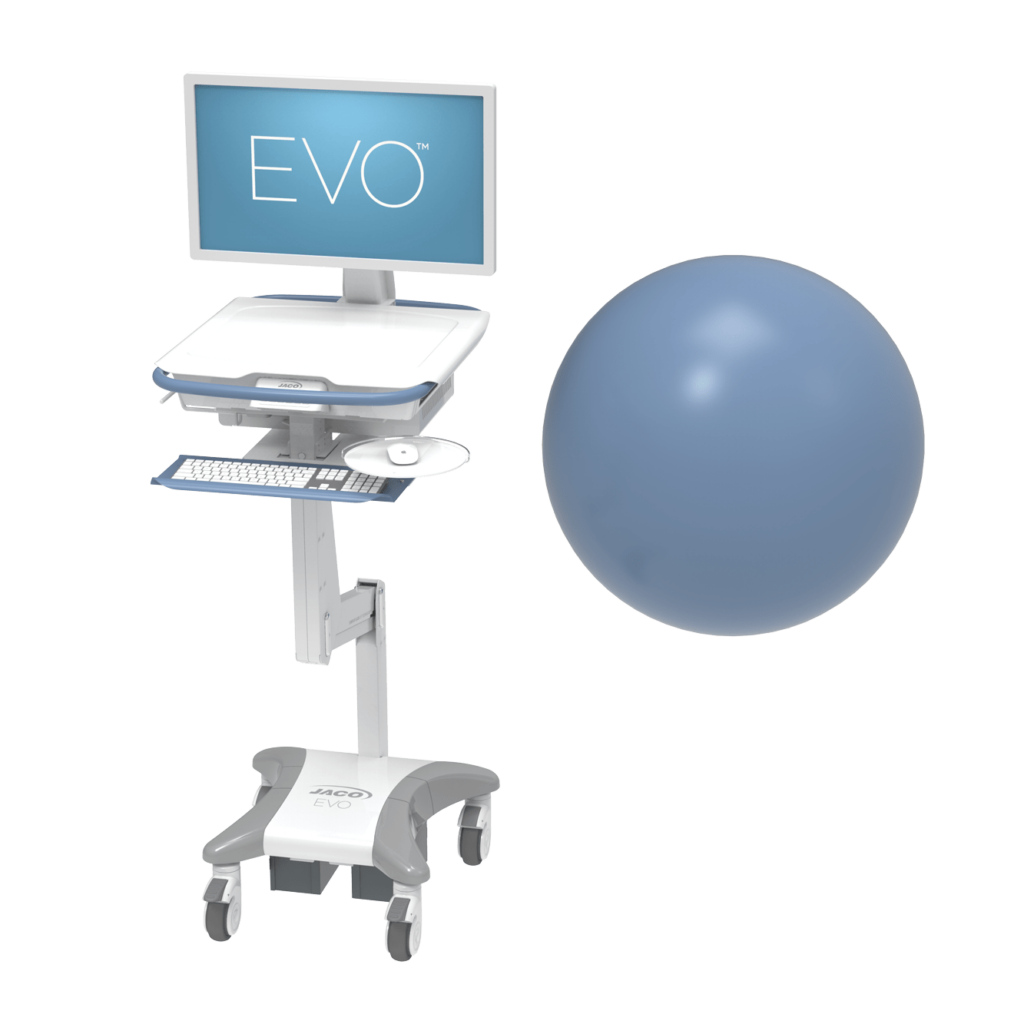

Jaco Customization, Accent Color, Distant Blue, RAL5023, Antimicrobial Powder Coat, Smooth Gloss
32-0183-PC
This Distant Blue color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL5023, DISTANT BLUE, POLYESTER, ANTIMICROBIAL, SMOOTH GLOSS, PER PRODUCT
Jaco Customization, Accent Color, Cobalt Blue, RAL5013, Antimicrobial Powder Coat, Smooth Gloss
32-0217-PC
This Cobalt Blue color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL5013, COBALT BLUE, POLYESTER, ANTIMICROBIAL, GLOSS SMOOTH, PER PRODUCT
Jaco Customization, Accent Color, Pastel Turquoise, RAL6034, Antimicrobial Powder Coat, Smooth Gloss
32-0199-PC
This Pastel Turquoise color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL6034, PASTEL TURQUOISE, POLYESTER, ANTIMICROBIAL, SMOOTH GLOSS, PER PRODUCT
Jaco Customization, Accent Color, Pastel Green, RAL6019, Antimicrobial Powder Coat, Smooth Gloss
32-0202-PC
This Pastel Green color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL6019, PASTEL GREEN, POLYESTER, ANTIMICROBIAL, SMOOTH GLOSS, PER PRODUCT

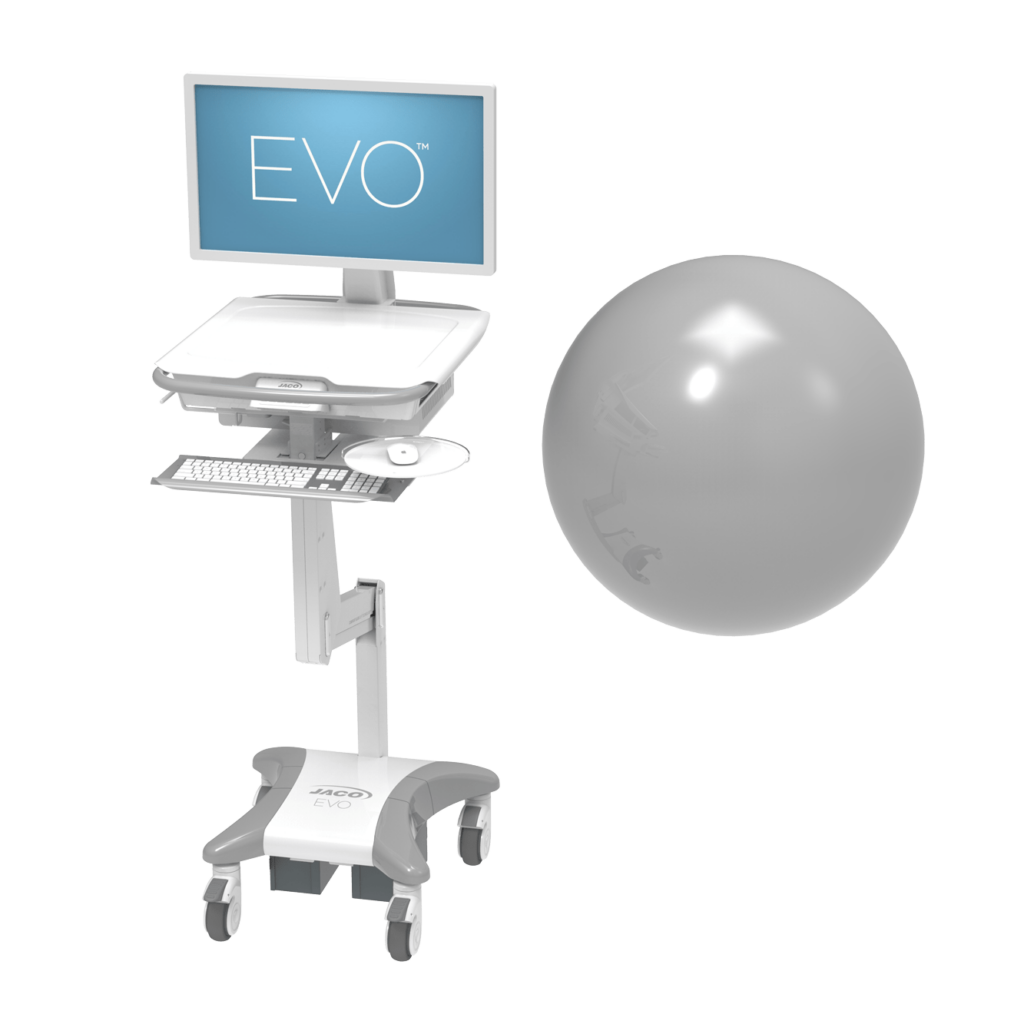

Jaco Customization, Accent Color, White/Teal Aluminum, Antimicrobial Powder Coat, Smooth Gloss
32-0203-PC
This White/Teal Aluminum color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, WHITE/TEAL ALUMINUM, POLYESTER, ANTIIMICROBIAL SMOOTH GLOSS, PER PRODUCT

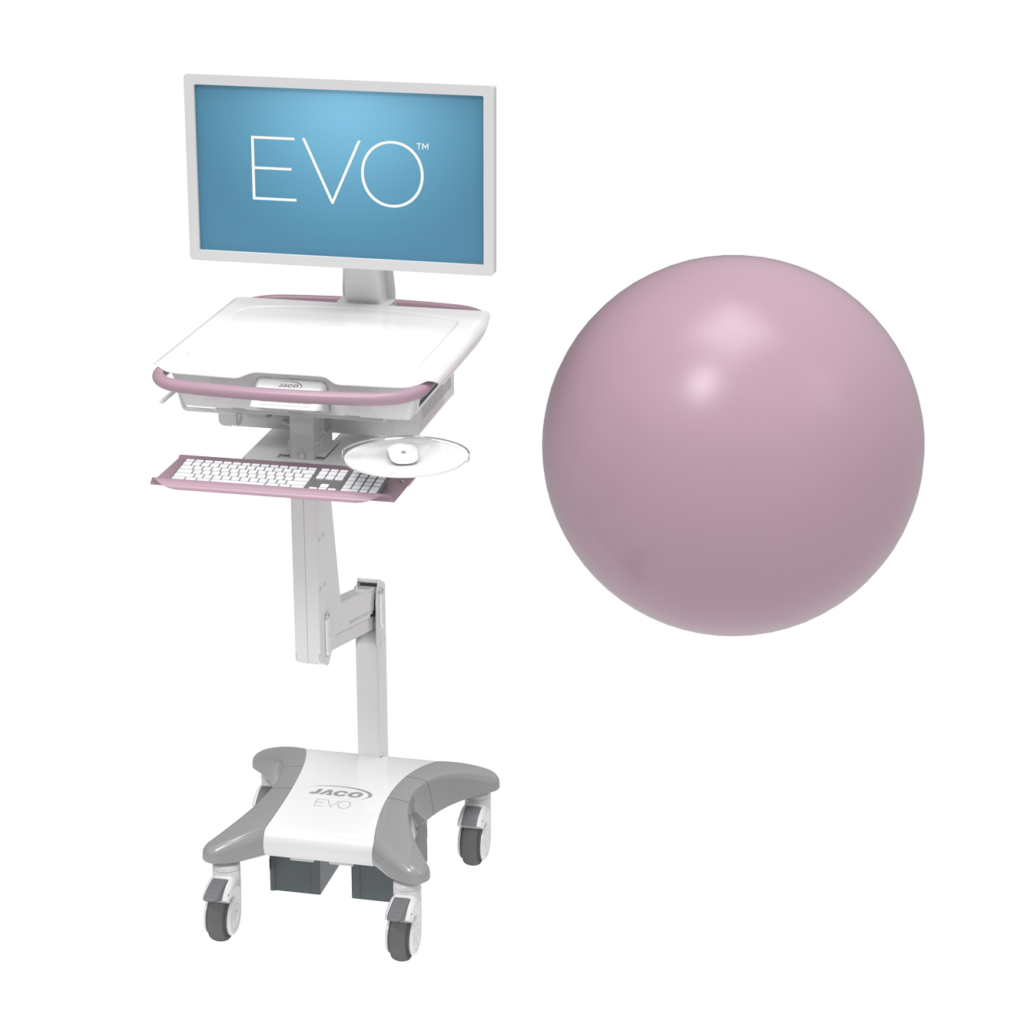

Jaco Customization, Accent Color, Pastel Violet, RAL4009, Antimicrobial Powder Coat, Smooth Gloss
32-0204-PC
This Pastel Violet color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL4009, PASTEL VIOLET, POLYESTER, ANTIMICROBIAL, SMOOTH GLOSS, PER PRODUCT

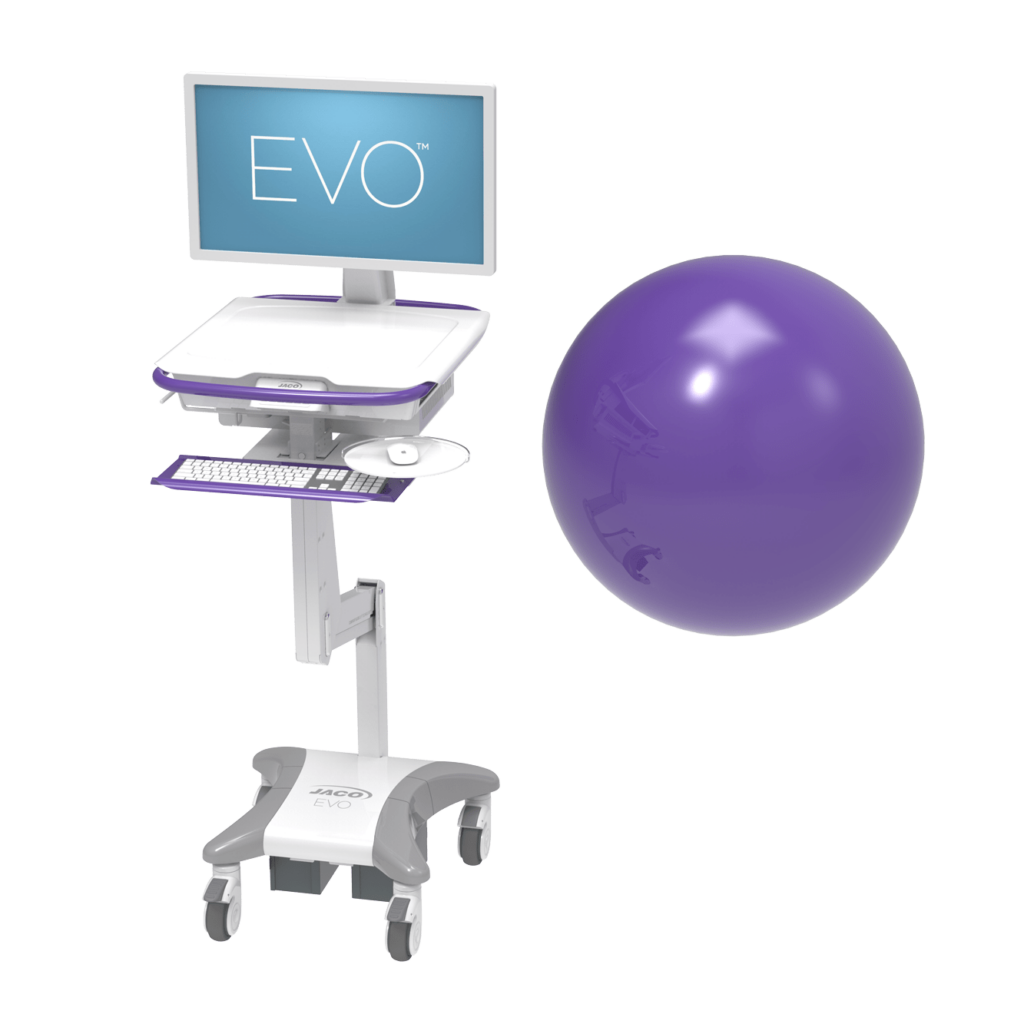

Jaco Customization, Accent Color, Deep Purple, Antimicrobial Powder Coat, Smooth Gloss
32-0205-PC
This Deep Purple color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, DEEP PURPLE, POLYESTER, ANTIMICROBIAL, GLOSS SMOOTH, PER PRODUCT

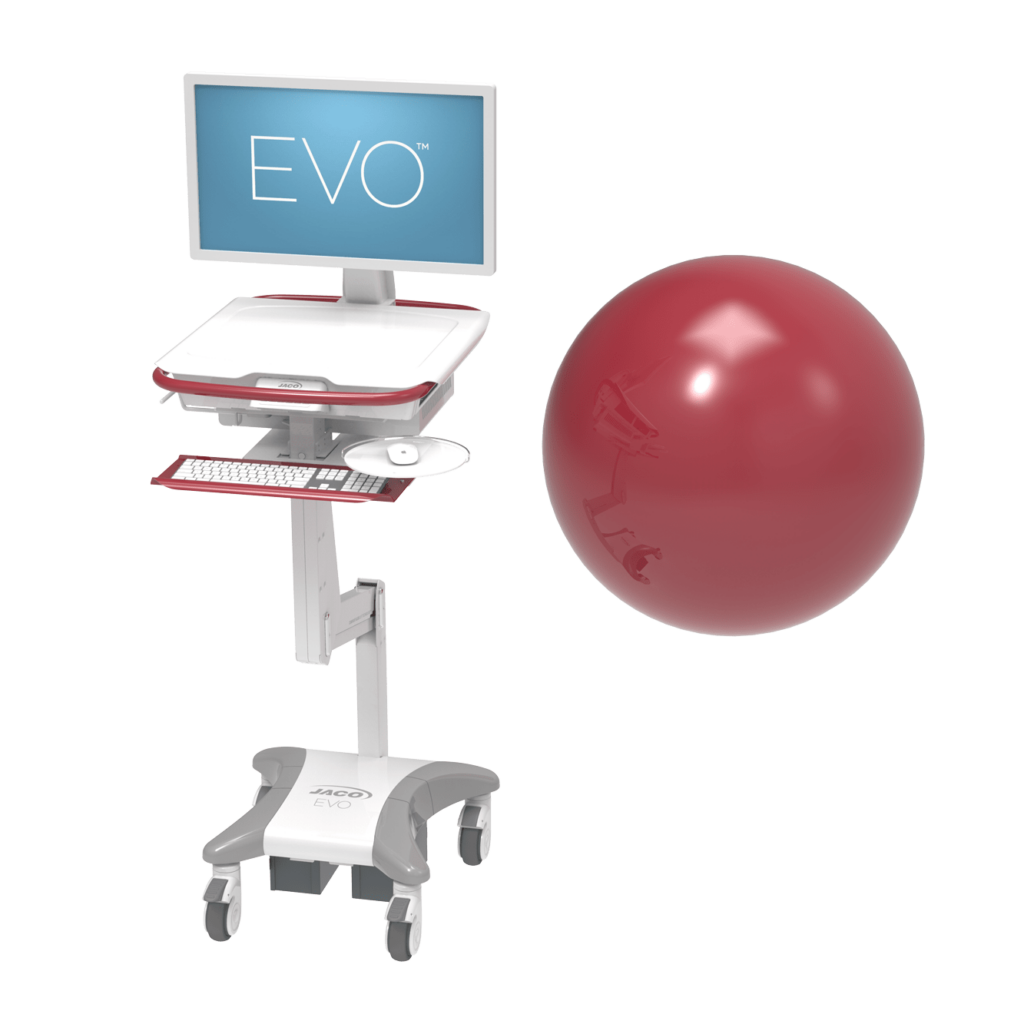

Jaco Customization, Accent Color, Ruby Red, RAL3003, Antimicrobial Powder Coat, Smooth Gloss
32-0218-PC
This Ruby Red color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products.
POWDER, RAL3003, RUBY RED, POLYESTER, ANTIMICROBIAL, GLOSS SMOOTH, PER PRODUCT

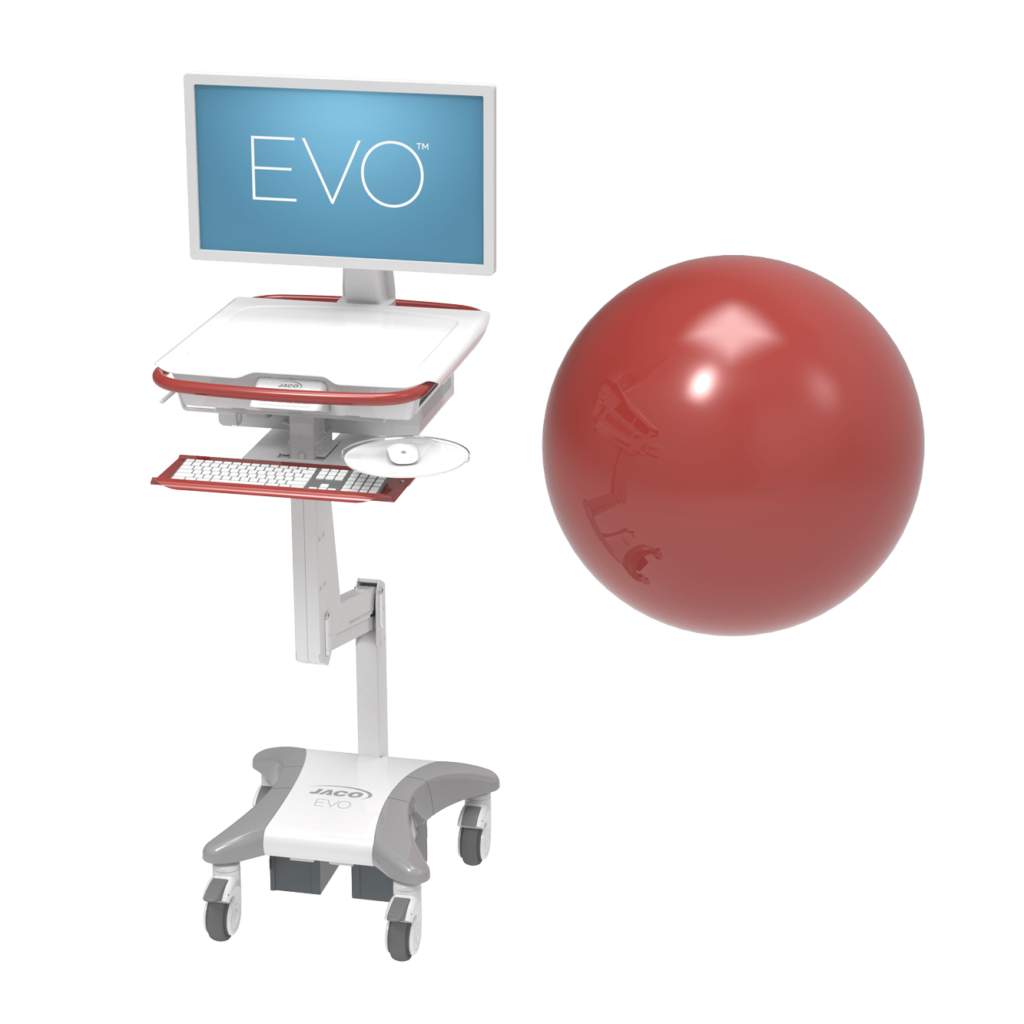

Jaco Customization, Accent Color, Signal Red, RAL3001, Antimicrobial Powder Coat, Smooth Gloss
32-0223-PC
This Signal Red color is available upon request and is one of Jaco's standard accent colors that are used on Jaco products. Additional charges may apply.
POWDER, RAL3001, SIGNAL RED, POLYESTER, ANTIMICROBIAL, GLOSS SMOOTH, PER PRODUCT
View details
Jaco Wall Station
WS-27
Jaco Wall Stations provide clinicians with a secure and effective way to access vital information and maximize care. Wall Stations are manufactured out of lightweight, aircraft-grade aluminum with a non-porous, anti-microbial powder coat surface for optimal infection control. All models are designed to be mounted in hallways and other tight spaces, and are easy to install and maintain.
WALL STATION, 27 INCH WIDE
Durable Ergonomic Design
JACO's Wall Stations are design with lightweight aircraft-grade aluminum to provide up to 10 years of use in a demanding healthcare environment. We have also engineered them to maximize productivity and minimize physical effort. The WS-27 model for computers includes a retracting keyboard designed to reduce operator fatigue and discomfort and meet ergonomic distance to screen standards to safeguard clinician's health.
Compliant and Efficient
All JACO Wall Stations use a smooth, solid, non-porous powder coat surface which allows for easy cleaning and proper infection control. Additionally, by maintaining a depth less than 4”, it meets healthcare regulations for in-room and hallway use, and the completely hidden cable management eliminates cord tangle and clutter for nurse safety and IT maintenance.
Customization
All JACO products are finished with an antimicrobial powder coat finish. We offer ten accent colors for trim caps and the keyboard tray. Using our in-house printing capabilities, we can produce multi color logos that are applied to the product. We are able to take your logo and adhere them directly to metal surface transforming them into a truly finished solution that can withstand a variety of sanitation and cleaning methods.
Made-In-America
Leveraging our world-class automated fabrication equipment, we build working prototypes of all new products, right from our facility in Franklin, MA. Our team of industrial designers and CAD engineers will work directly with our fabrication technicians to review the prototypes every step of the way to enhance the products, and can provide custom mounts and options to make the product that fits your needs and solves your problems.View details for Scanner Mounts

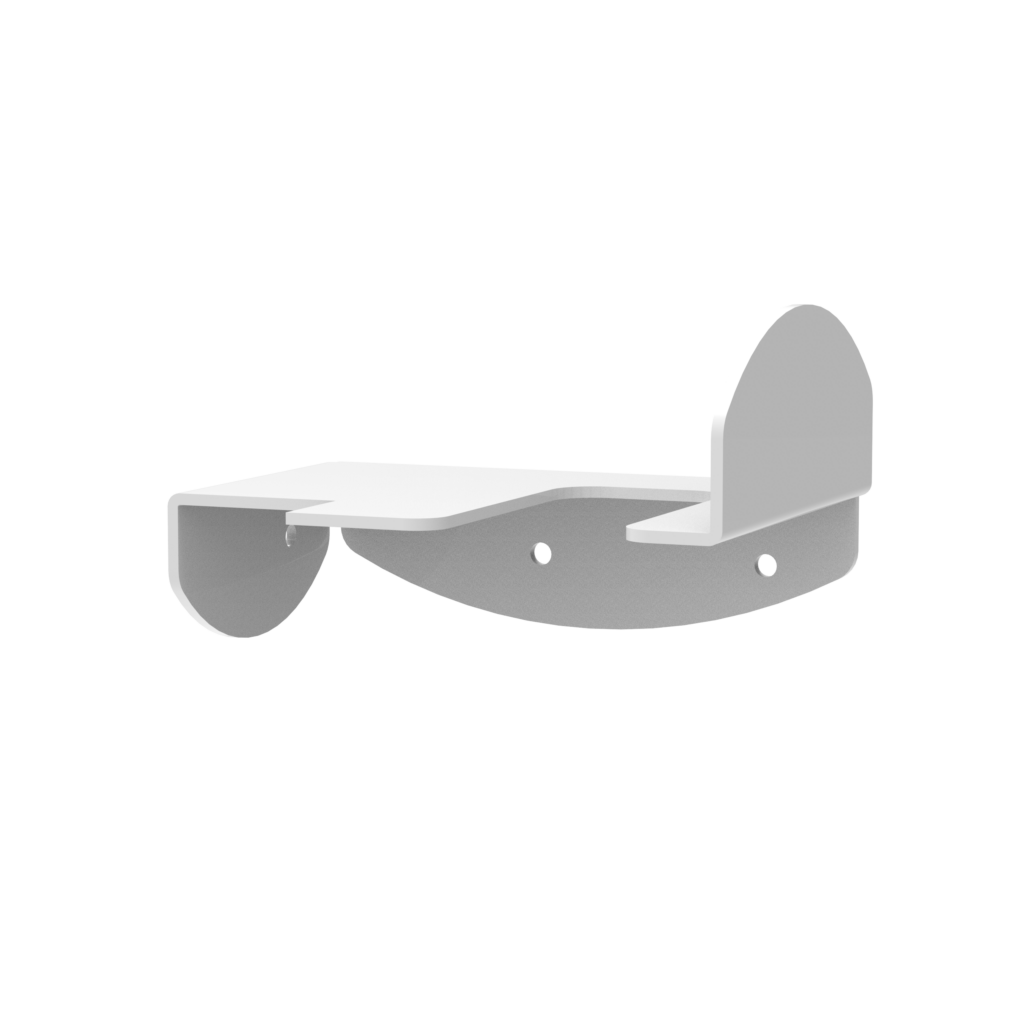

JACO Wall Station Wired Scanner Mount
51-5209
JACO's Wall Station Scanner Mount works with most handheld Wired Scanners and positions the scanner in a convenient, easy to access location.
MOUNT,SCANNER,WIRED RIGHT,WALL STATION
View details

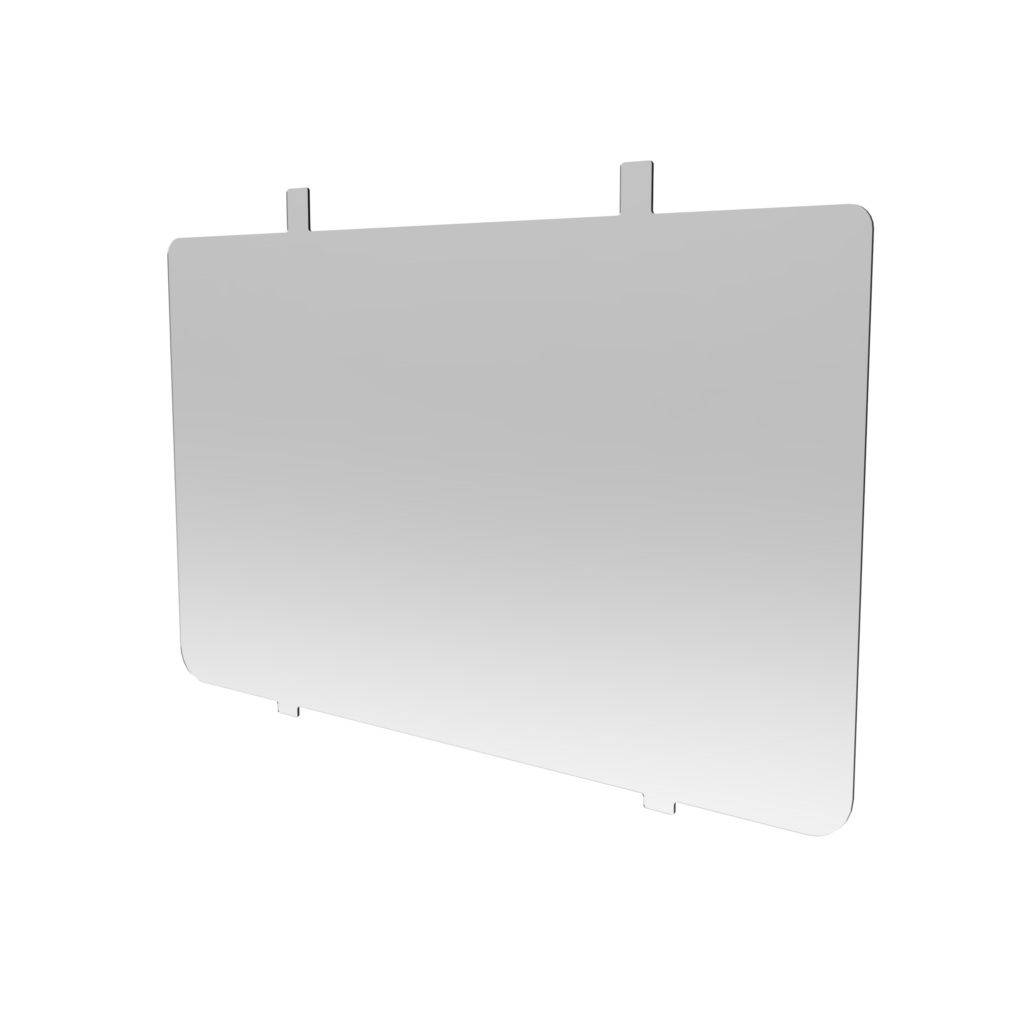

JACO Wall Station WS-27, optional Plexiglass LCD cover
51-5172
Clear Plexiglass Cover for protecting the LCD used in the JACO WS-27 Wall Stations
KIT, COVER, LCD, WS27, WALL STATION
